RS400 Low Profile Racing Servo

RS400 Low Profile Racing Servo

 The NSDRC RS400 Low Profile Race Servo was designed with speed and precision in mind. Delivering an incredible 400+ oz-in of torque and 0.05 transit speed at 8.4V, Spec's like these make this servo a top contender for many 1/18 to 1/8 scale on/off road vehicles used for racing, drifting, and anything else requiring lighting fast speed, awesome responsiveness, and great power! Other features include a full cnc aluminum case that provides high durability and improved heat dissipation, an industry leading 5 gear stainless steel gear train that is supported by dual ball bearings, and a high efficiency coreless motor.

Using our industry leading 5 gear stainless steel gear-trian alongside a high quality magnetic angle sensor, the RS400 has superior centering, extreme precision, smooth actuation, and unrivaled durability! If you're looking for a servo to take your rc to the next level, let us steer you in the right direction!

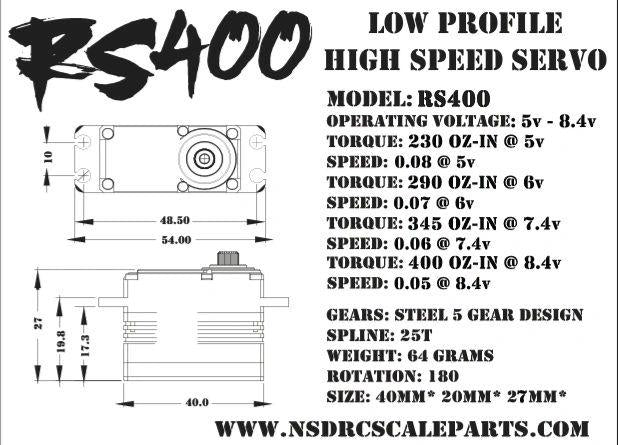

Model: RS400 Low Profile Race Servo

Operating Voltage 5V - 8.4V

Speed Specs:

Speed @ 6.0v - 0.07/60° sec

Speed @ 7.4v - 0.06/60° sec

Speed @ 8.4v - 0.05/60° sec

Torque Specs:

Torque @ 6.0v - 290 oz-in (21 kg-cm)

Torque @ 7.4v - 345 oz-in (25 kg-cm)

Torque @ 8.4v - 400 oz-in (29 kg-cm)

Features:

• Low-Profile case saves space and weight

• Full Cnc aluminum case

• High voltage circuitry

• 180 Deg rotation

• 11 Point O-ring seals

• Full stainless steel gears

• Dual ball bearings

• High Efficiency Coreless Motor

• Output Shaft 25 Tooth

• Weight 64g

• Dimensions 40 x 20 x 27mm

Warranty: 1 year
