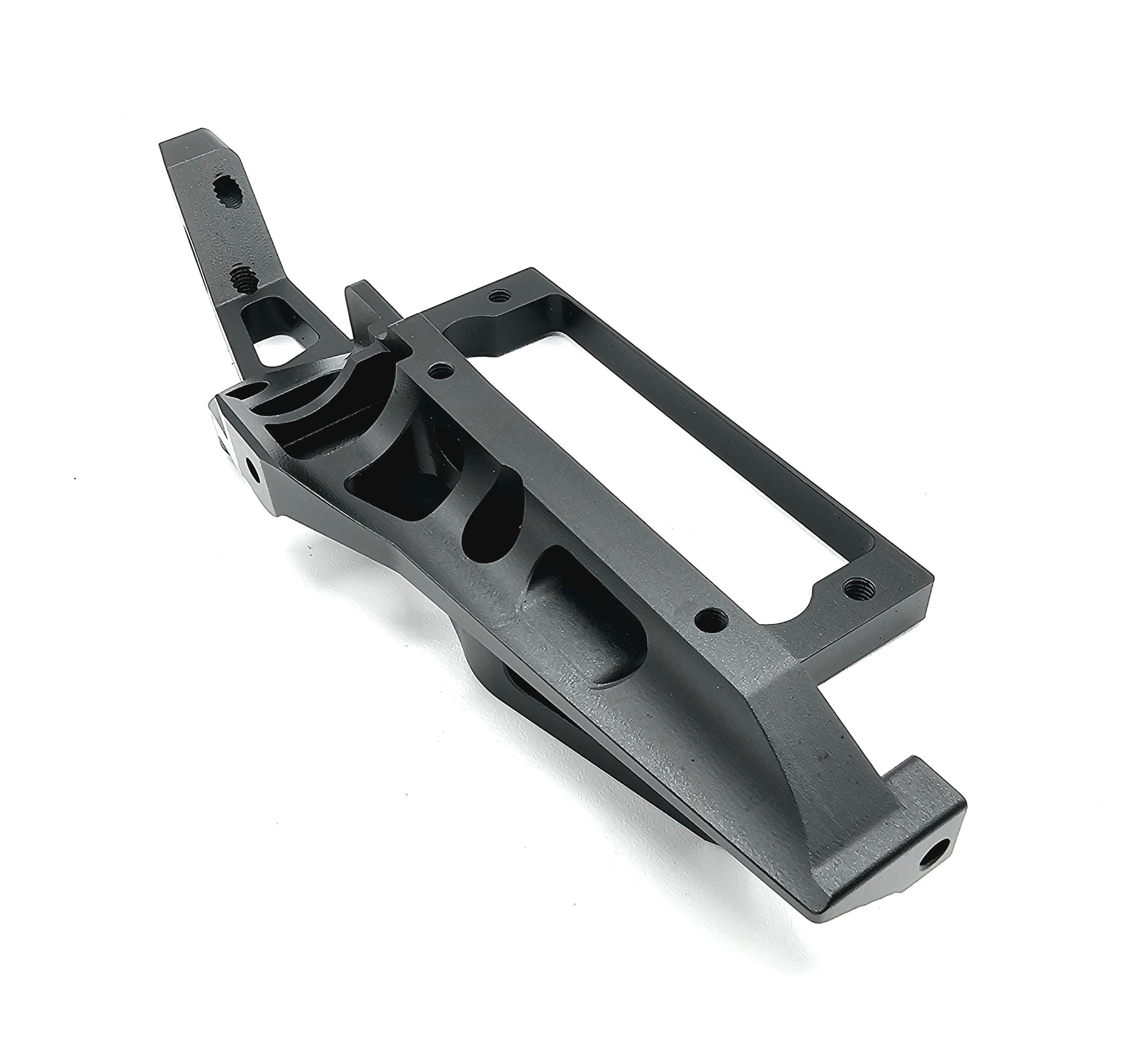

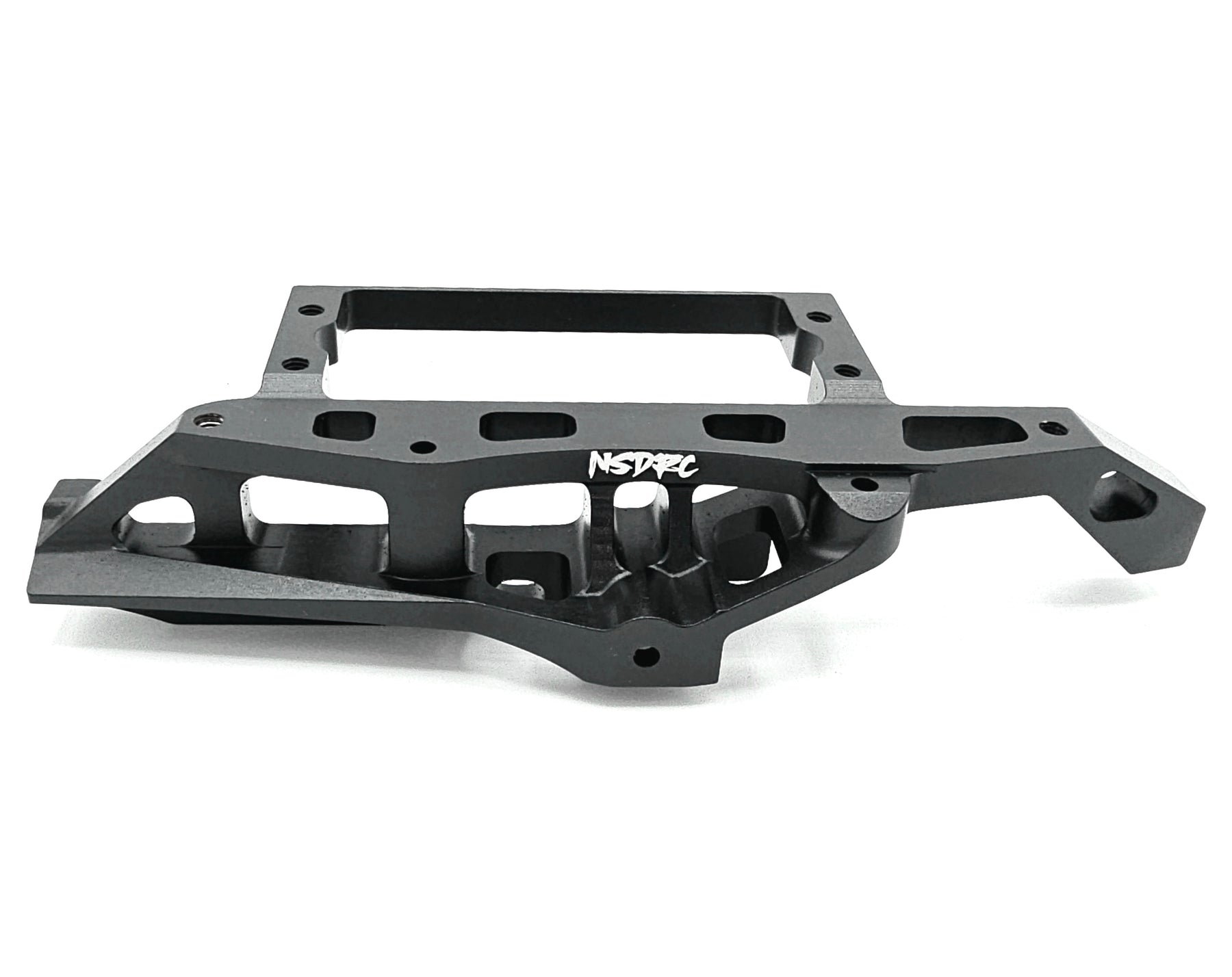

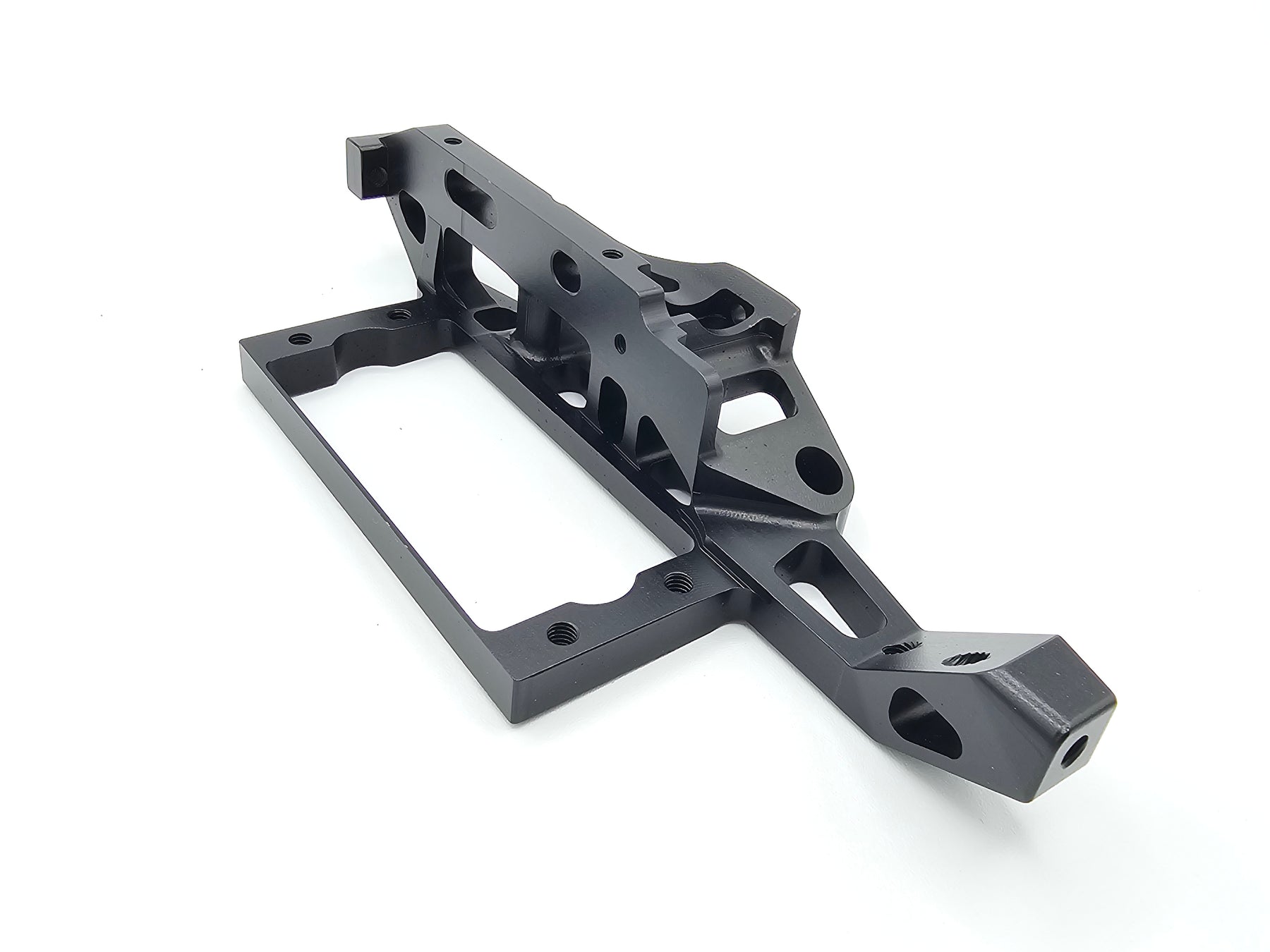

Vertex-6 BTA Full Truss Servo Mount

This is not just a mount swap. It’s a complete steering structure and geometry correction system.

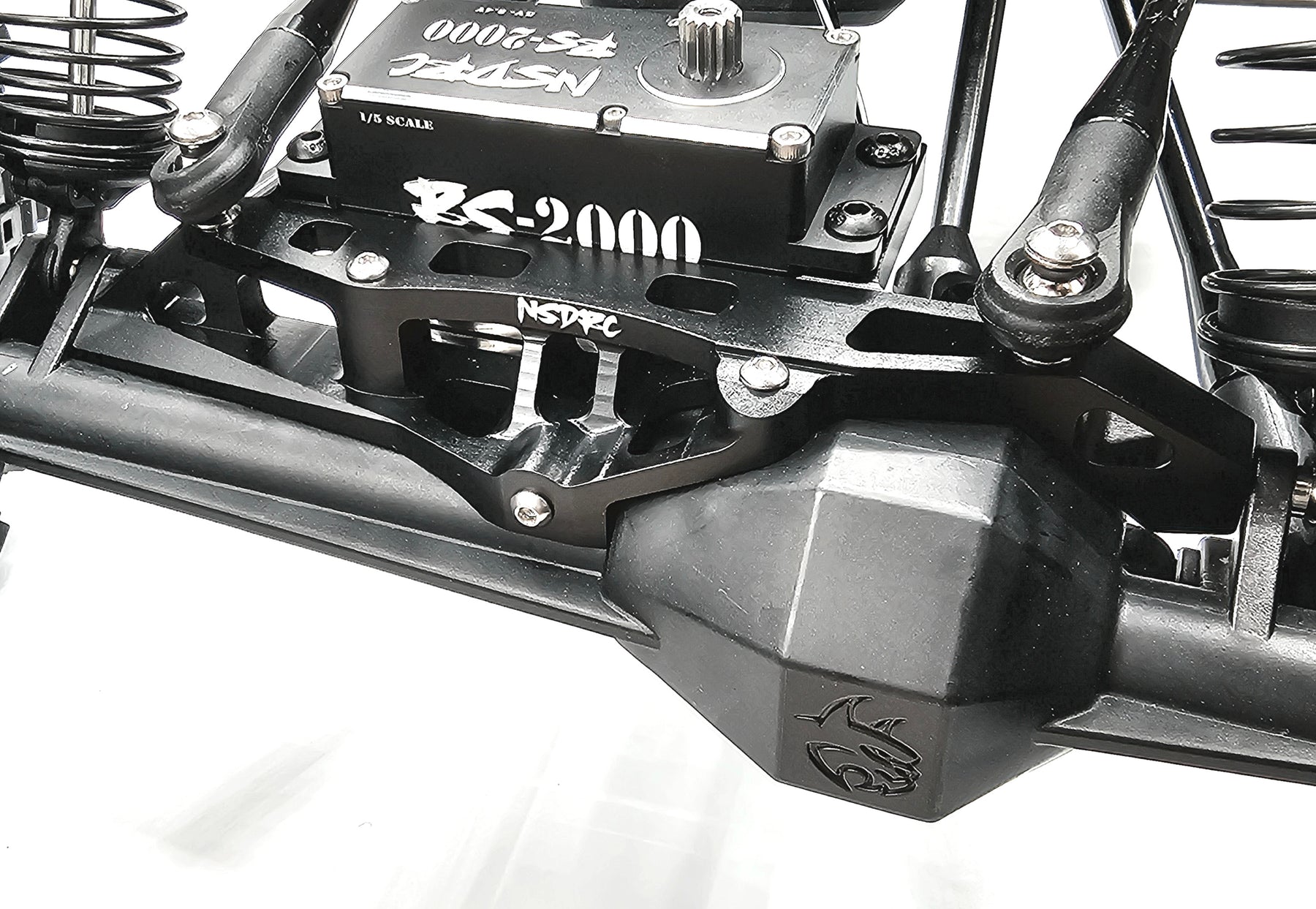

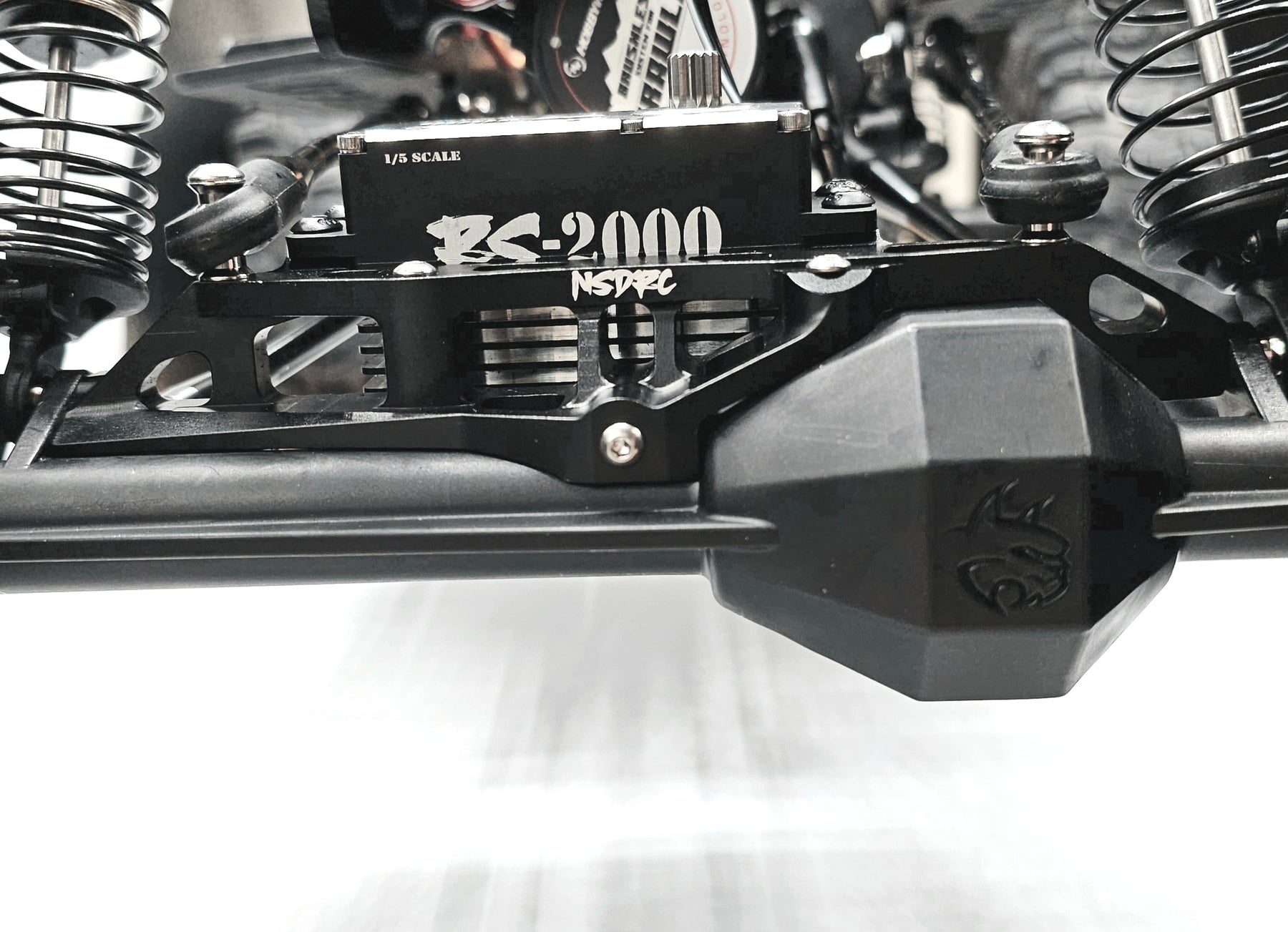

Our Vertex-6 Behind-The-Axle (BTA) Full Truss Mount replaces the weak factory mount with a multi-point braced truss that ties into multiple locations on the axle housing, dramatically increasing overall axle rigidity.

Key Benefits:

•Full Truss Design: Reinforces the entire axle housing, not just the servo area

•Multi-Point Mounting: Distributes steering load   across the axle instead of stressing one location

•Behind-The-Axle Servo Position: Moves servo     rearward and lower

•Lower Center of Gravity: Improved stability on climbs   and side-hills

•Reduced Forward Impact Exposure: Servo no longer   sits in the frontal impact zone

•Eliminates the flimsy stock mount

This mount is the foundation of the system. Stronger axle, better servo placement, improved vehicle balance.

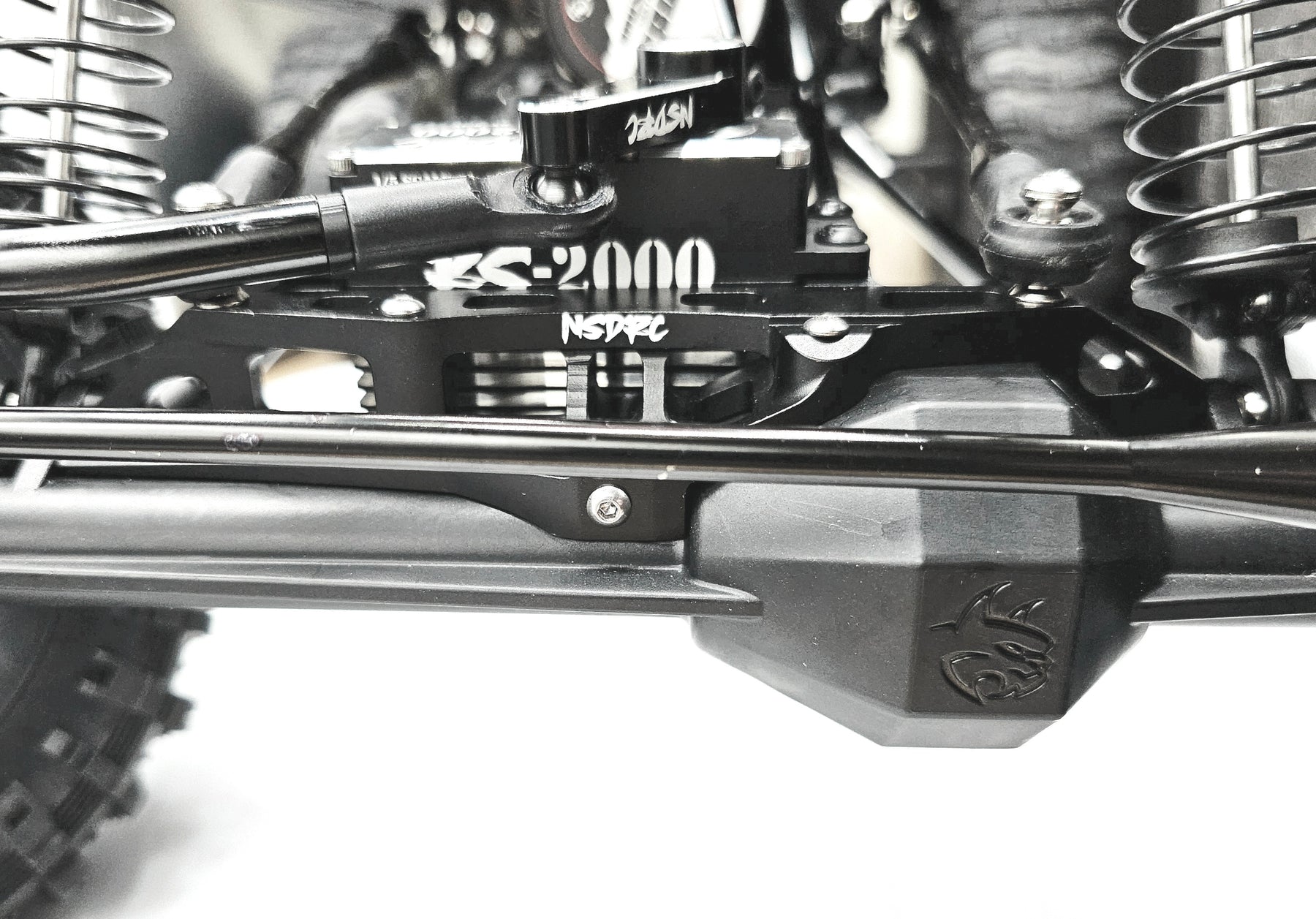

You will need to bend your stock drag link or add our custom bent drag link in order to have the clearance needed for full steering angle.

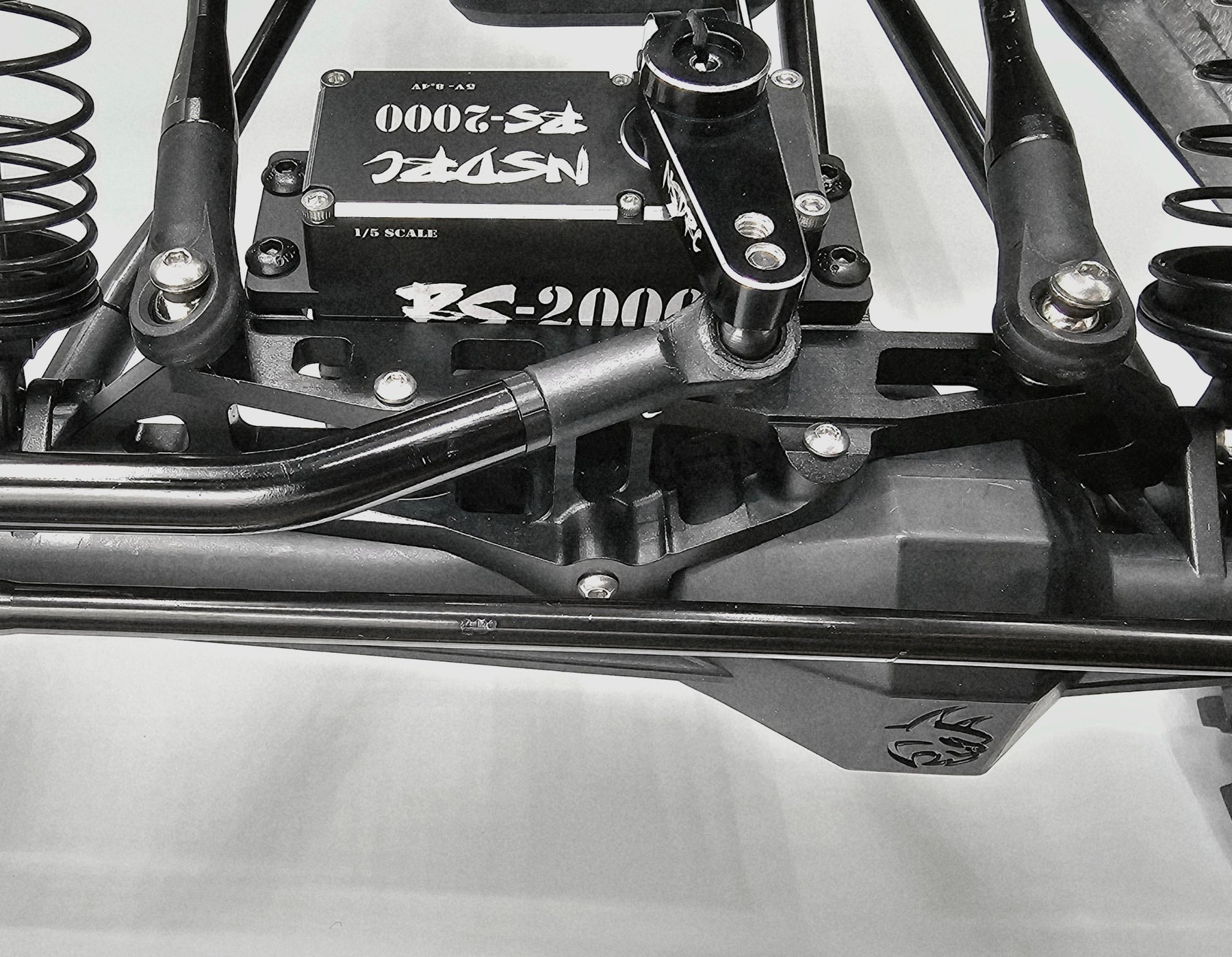

Works with the stock servo horn or our Long 1/5 Monster Horn

Made of Cnc'd 7075 Aluminum

Includes:

1 x Mount

2 x 22mm M4 Screws

2 x 20mm M4 screws

1 x 24mm M3 Screw

1 x 22mm M3 Screw

1 x 8mm M3 Screw

Servo horn, drag link, and slider plate are optional add-ons.
